React Theory

preface

• component process
• component(template) - instance - executed function - insert dom into Html(React use CreateElement)
• component could manage its own state
  • one state one component, they are independent
• props 传递 parent 的 state 给 child - external
• newProps --> component re-render
• state 管理当前 component 的 state - internal
• state 改变 --> re-render

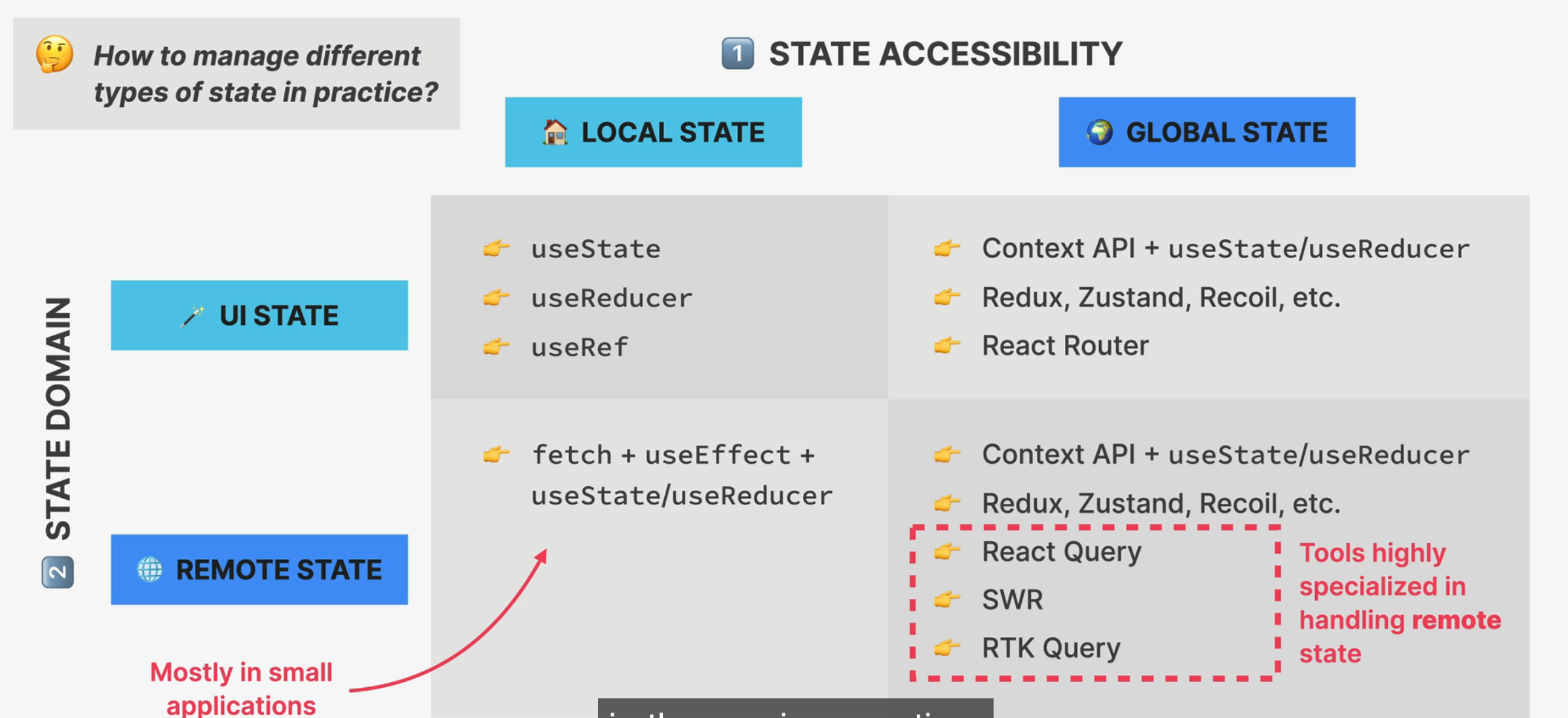

state management

• local state vs global state
• local state: component instance
• global state: context

条件	结果
需要存储数据
数据是否会在某个时间点发生变化？	否 → 使用常规 const 变量
	是 → 继续下一个条件
能否从现有的状态/props 计算出来？	是 → 派生状态（Derive state）
	否 → 继续下一个条件
它是否应该重新渲染组件？	否 → 使用 Ref（useRef）
	是 → 在组件中创建一个新的状态
何时创建状态	何处放置状态
该状态是否仅由当前组件使用？	是 → 将状态保留在组件中
	否 → 继续下一个条件
该状态是否也被子组件使用？	是 → 通过 props 传递给子组件
	否 → 继续下一个条件
该状态是否被一个或几个兄弟组件使用？	是 → 将状态提升到第一个共同的父组件

Render definition

React to state changes by re-render UI😂

2 conditions to re-render

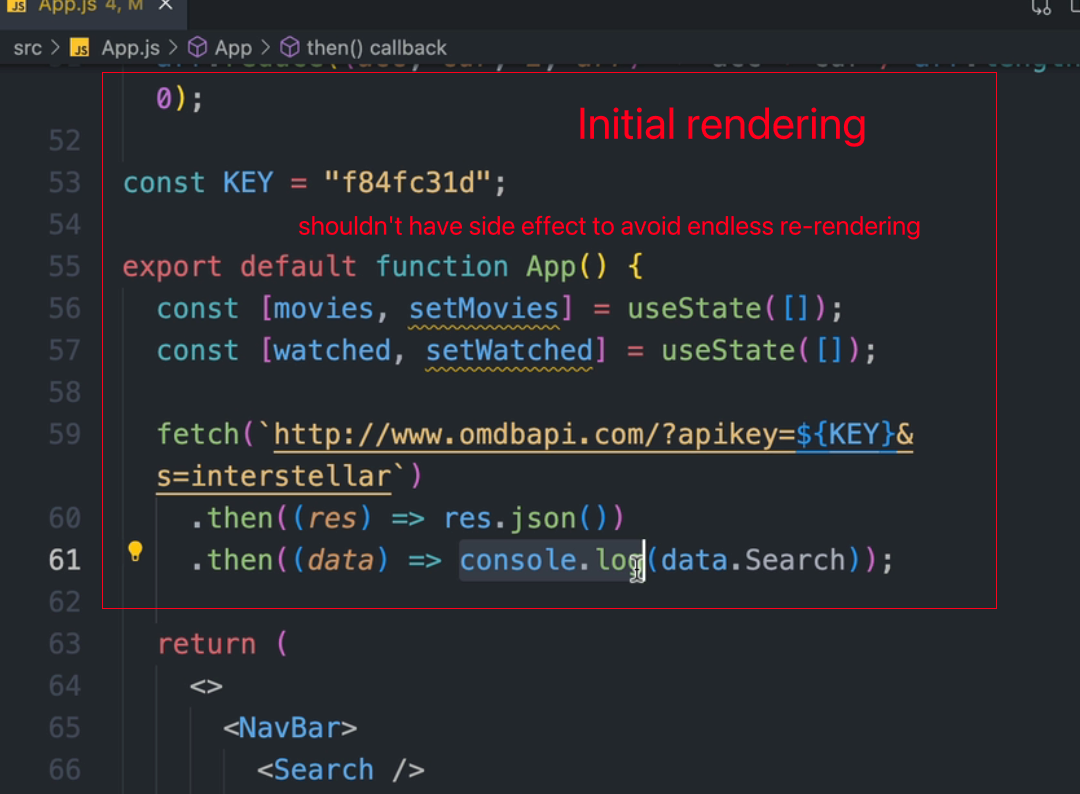

• initial render
• state update - component re-render - view re-render

  Virtual DOM - cheap and fast to create multiple trees. Caused write to dom is expensive and slow, usually only small part need to update

Render phase

Has impact on all of its children

• Reconciler - decide which DOM elements need to update
• fiber tree(fiber for each component and DOM element)
  • contain: state, props, side effects, hooks, queue of work...
• Updated React Elements --> new Virtual DOM + current Fiber Tree --> reconciliation + diff
• render(diff) > patch(diff) > re-render
• Asynchronous(Can be splited into diff chunks)
• render will not been triggered instantly, but will be scheduled when JS engine is idle

Commit phase

• list of DOM updates --> Renderers(ex: ReactDOM): write to dom --> update UI
• commit is synchronous
• after finish commit, WIP fiber tree become current fiber tree

diff

• same position, different element
• destroy old tree including its children
• same position, same element
• 更新属性,不重新渲染 DOM(element and state)

browser paint

Component Instance Lifecycle

• Mounting(initial render)
• Updating(state/props/parent rerenders/context update)
• Unmounting(remove component)

optimize

• separate non-state component and stateful component to avoid unnecessary re-render
• child as children instead of props to avoid unnecessary re-render

useMemo()

• Only makes sense when the component is heavy (slow rendering), re-renders often, and does so with the same props
• As a props of parent component, in case to avoid unnecessary re-render, we could memo this component, only when its props change, it will re-render
